F9 V-Bank Type HEPA Filter

October 18, 2023

Batch of V-bank #HEPA #filters has passed the factory inspection and is ready for shipment.

F9 V-Bank Type HEPA Filter

F9 V-Bank Type Air Filter Product Detail:

Type: V-bank (4 V)

Frame material: ABS + PVC

Filter media: Micro glass fibre paper

Slot gasket: Polyurethane

Filter class: F9 (EN1822)

Dim.: 592mmX592mmX435mm-4V

F9 V-Bank Air Filter Technical Datasheet

TypeSize(mm)(HxWxD)Test Air flow(m³/h)Initial pressure(≤Pa)Media area(m²)Filter grade(EN1822)
V-Bank 592*592*435340089.130F9

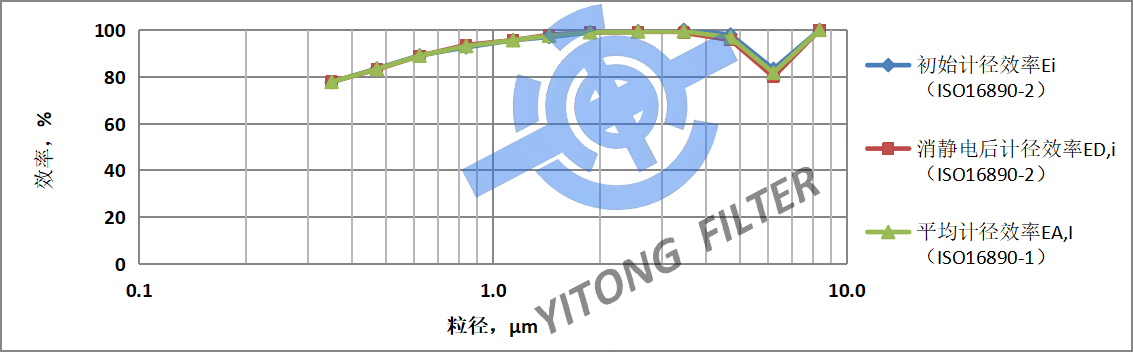

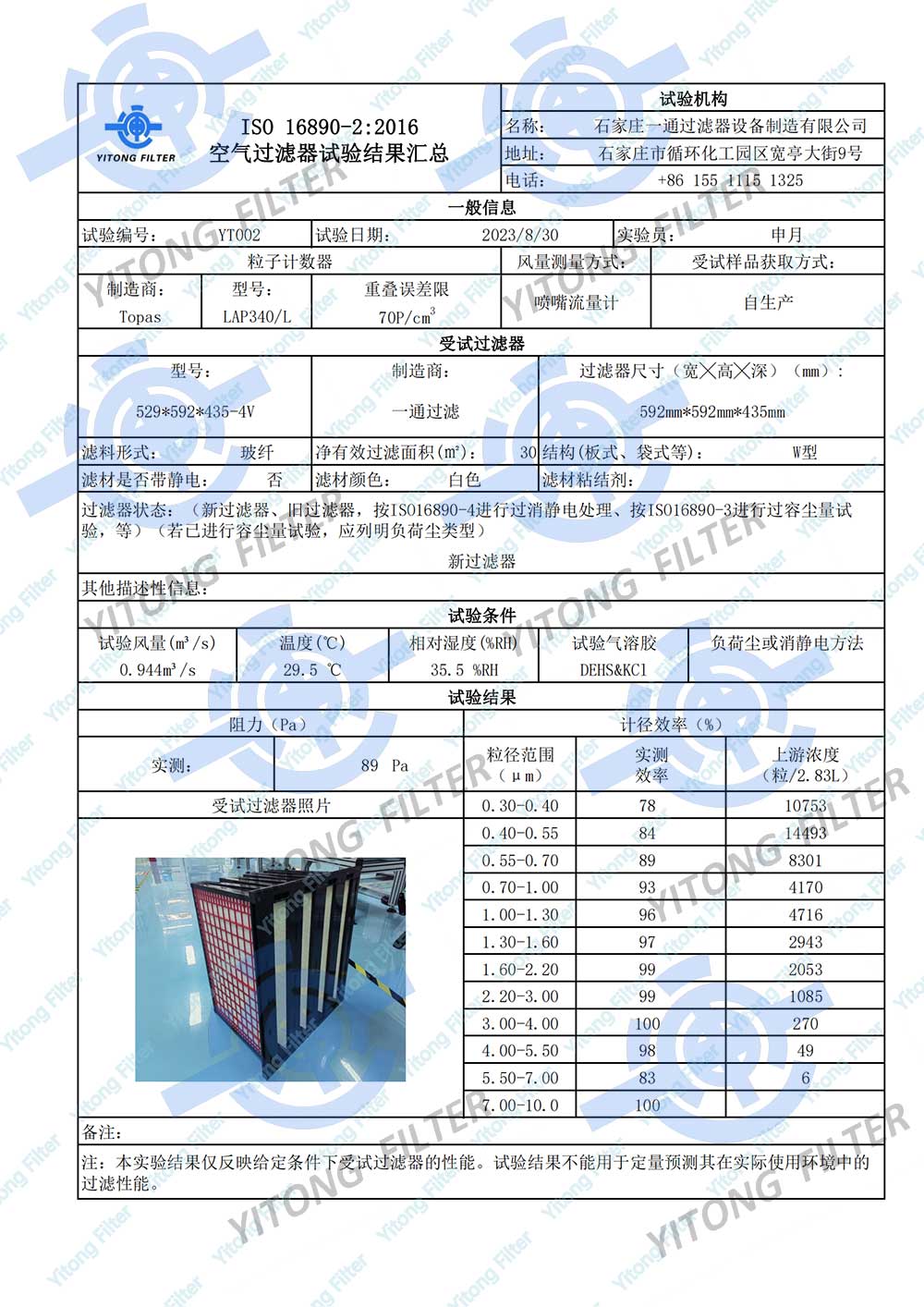

F9 V-Bank Air Filter Test Report

Initial pressure Test Report
Air flow(m³/h)1700255034004250
Initial pressure(≤Pa)325890131
Filteration area(m²)30㎡


F9 V-Bank Type HEPA Filter

F9 V-Bank Type HEPA Filter

F9 V-Bank Type HEPA Filter

V-bank air filter is a type of high-efficiency air filter used in various applications, particularly in commercial and industrial HVAC systems. These filters are designed to provide superior filtration and are often used in environments where maintaining high indoor air quality is crucial. Here are some key features and characteristics of V-bank air filters:


1. High Efficiency: V-bank air filters are designed to have a high particle removal efficiency. They are capable of removing a wide range of airborne contaminants, including dust, pollen, mold spores, bacteria, and even fine particulate matter.


2. Deep Pleat Design: These filters have a deep pleated design that allows for a large filtration surface area, which increases the filter's dust-holding capacity and overall efficiency.


3. V-Shape Configuration: V-bank air filters are named for their V-shaped arrangement of pleats or filter media. This design helps increase the surface area and allows for efficient airflow and low resistance to air.


4. Frame and Seal: The filter is typically housed in a rigid frame, which may be made of metal or plastic, and is designed to fit securely within an HVAC system. Proper sealing ensures that air passes through the filter media and not around it.


5. MERV Ratings: V-bank air filters are available with various Minimum Efficiency Reporting Value (MERV) ratings. Higher MERV ratings indicate greater filtration efficiency, capturing smaller particles. Filters with a MERV rating of 14 or higher are considered high-efficiency filters.


6. Application: V-bank air filters are commonly used in hospitals, cleanrooms, laboratories, data centers, and other environments where maintaining a high level of indoor air quality is essential.


It's important to note that the specific design and features of V-bank air filters can vary between manufacturers. When selecting an air filter for a particular application, it's important to consider the required filtration efficiency, filter size, and compatibility with the HVAC system to ensure optimal performance and air quality.
