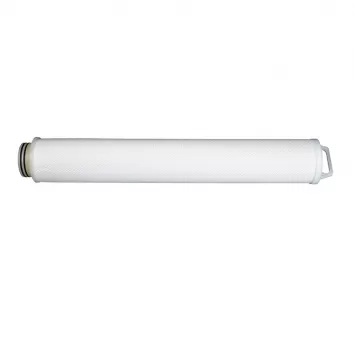

High Flow Filter Cartridge - YTHF152

The YITONG high flow rate filter element is a replacement for the Parker brand. It features a large diameter structure of 6" (152.4mm) and a pleated form, utilizing a double apron design. The inner support is made of high strength polypropylene, while the liquid flows from the outside to the inside. The outer support consists of a monolithic polypropylene framework and a polyester filter mesh. This unique structure provides a larger filtration area compared to standard pleated filter elements. As a result, it offers increased filtration flow and a longer service life when used to filter high purity reagents. It is particularly suitable for filtering high purity water.

Product Features

1. The filter element utilizes a hydrophilic membrane material that enables direct usage without the need for pre-wetting, resulting in significant time and cost savings during operations.

2. The filter element features an integrated framework that offers several advantages, including a large filtration area, extended service life, high strength, dimensional stability, and a minimal risk of leakage.

3. The filter element is an ultra-long variant measuring 6" (152.4mm), making it well-suited for applications with high flow rates and requiring efficient filtration of highly polluted substances.

4. The system is designed to be simple, with no consumption of acid and alkali or pollution caused by regenerated acid and alkali wastes.

5. The filter element exhibits excellent mechanical performance and remains undamaged even in harsh operating conditions.

6. It can be easily installed in existing shells without the need for replacement or modification.

7. The filter material is both safe and sanitary, meeting the FDA's requirements for cleanliness and safety.

Technical Parameters

1. Filter media: polypropylene fiber membrane

2. Upstream and downstream support material: polypropylene

3. Supporting frame and structural components: polypropylene

4. Pore size: 1um, 5um, 10um, 20um, 50um, etc.

5. The length of filter element: 10 ", 20", 30 ", 40", 60', etc.

6. Sealing materials: silicone rubber, butadiene rubber, EPDM, fluorine rubber

7. Closed mode: hot melt welding

8. Maximum operating temperature: 80 C, 0.28 MPa

9. Maximum positive pressure difference: 0.42 MPa (25 C)

10. Maximum replacement pressure difference: 0.28 MPa (25 C)

Ordering Information

1. Filtration of condensed water in power plants;

2. Pharmaceutical raw materials, solvents and water treatment in the bio-pharmaceutical industry;

3. RO security filtration, seawater desalination pretreatment;

4. Paint, ink, paint, petrochemical industry.

5. Advantages of Parker filter element

6. The filter element has compact, uniform pore size and high filtration accuracy.

7. Small filtration resistance and large flow rate. Deep filtration, filter element has large contamination capacity and long service life.

8. Intensity. With PP skeleton support, it can withstand pressure difference up to 0.3 Mpa without deformation.

9. Chemical corrosion resistance of acid, alkali and organic solvents.
