Gel type HEPA H13/H14 filters designed for easy installation as terminal filter in clean room.
Micro glass fibre paper as filter media with stable performance and longer service life.
The biggest difference is Gel sealant glue which looks like jelly. This can ensure 0% leakage from sides, also environment friendly.
Detailed information:
Type: Mini Pleat
Frame material: Galvanized sheet, Anodised extruded aluminum, SUS304
Filter media: Micro glass fibre paper
Slot gasket: Gel sealant glue
Filter class: H13/H14 (EN1822)
Initial resistance: 220 ~ 250 Pa
Standard size: 610 x 610mm,610 x 305mm, 450 x 450mm
Standard depth: 69/90/105mm
Material and Operation Conditions
| Madia | Fiber glass /PTFE |
| Frame | Aluminum Alloy |
| Frame gasket | Double component polyurethane glue |
| Slot gasket | Imported gel sealant glue |
| Separator | Hot melt bead |
| Optional aluminum frame thickness (mm) | Top： 81，95 Side： 69，75，90，93，104，117 |
| Max. Temperature | 70℃ |
| Max. Humidity | 100% |
Technical datasheet
| Model | Type | Material | Size（mm）（WxHxD） | Air flow（m³/h） | Initial pressure(≤Pa) | Filteration area（m²） | Velocity（m/s） | Filteration grade（EN1822-4） | |||||||
| YTGX | No separator（W） | fiber glass（BX） | 610x305x69 | 500 | 90 | 4.92 | 0.75 | H14 | |||||||
| PTFE | 610x610x69 | 1000 | 90 | 9.84 | 0.75 | H14 | |||||||||
| 915x610x69 | 1500 | 90 | 14.77 | 0.75 | H14 | ||||||||||
| 915*610*69 | 900 | 90 | 14.77 | 0.45 | U16 | ||||||||||
Note: More specifications can be customized
Benefits of production:
1. Long service life
2. Perfect sealing
3. Easy installation
Benefits of our factory:

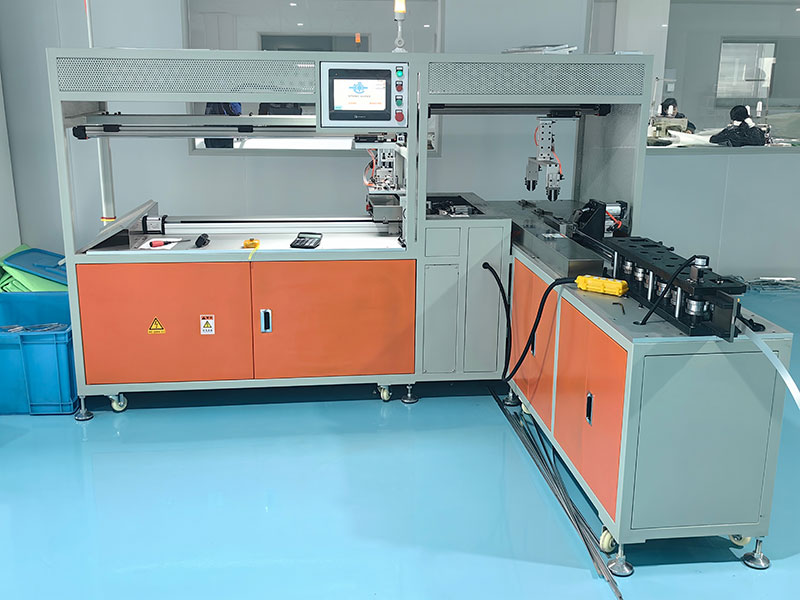

1. Cleanroom workshop.
2. 100% test in our laboratory.
3. Buyer can monitor working schedule in real time via mobile phone.
Custom Designed Mini Pleat Filters of Various Sizes, Shapes and Materials
