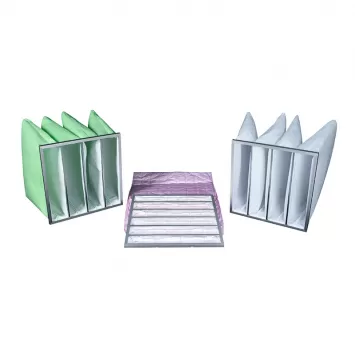

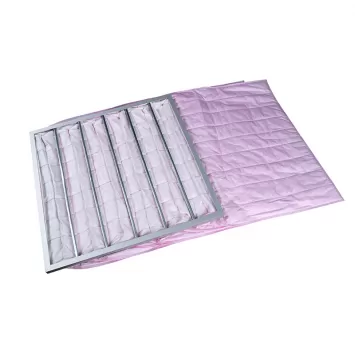

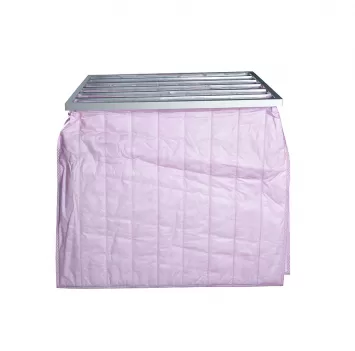

Yitong medium efficiency air filter is made of non-woven fabrics and galvanized plate, It can stop particles at the size of 1-5 microns. The thermally bonded tech is used to improve leakproof ness and reduce the possibility of breakage. It has not only the advantages of high throughput, low resistance, and high dirt holding capacity but also can be reusable because it is washable which gives it longer service life.
Type: Panel, Pleated and Pocket.
Filter frame: Paper, ABS, Galvanized sheet, extruded aluminium, stainless steel
Media: Chemical fiber, fibreglass, synthetic, Polypropylene fiber
Filter class: F5-F9
Initial pressure drop: 50-80Pa
Standard size: Standard depth: mm
Customized products prefered
Material & Working Conditions:
| Filter Media | Synthetic fiber, Glass Fiber |
| Pocket type | Sewing Pocket, Ultrasonic Pocket |
| Frame Material | Extruded Aluminium, Galvanized Steel,ABS,Stainless Steel |
| Standard Frame Size（mm） | Aluminium：21、25、46Plastic：25 |
| Max. Working Temperature | 50℃ |
| Max. Working humidity | 100% |
Technical Data
| Model | Type | Size（mm）（HxWxD） | Pockets | Air Flow（m³/h） | Initial Pressure（≤Pa） | Filtration Area（m²） | Velocity（m/s） | Filter Class（ISO16890）90) |
| YTZXDS | （HX） | 594x594x550 | 6 | 3400 | 4.55 | ePM10 55% | ||
| （BX） | 594x594x660 | 8 | 3400 | 6.89 | ePM10 55% | |||
| 594x594x660 | 10 | 3400 | 8.42 | ePM10 55% |
1. Enduring extreme temperatures and highly proficient
2. Generous capacity, remarkable performance
3. Reusable
| Model | Type | Frame thickness | Filter class | Size (W*H*D*P) | Frame material |
| YTZX | DS (pocket) | 50-150 20 | F5 F6 F7 F8 | 592*592*46 287*592*46 490*592*46 | ABS (ABS) Galvanized sheet (DX) Extruded aluminium (L) Stainless steel (SS) |
This product is mainly utilized in the mid-level filtration in medical centers, chemical, electronic, and pharmaceutical industries, providing assistance to the high-efficiency filters in lightening their burden.
