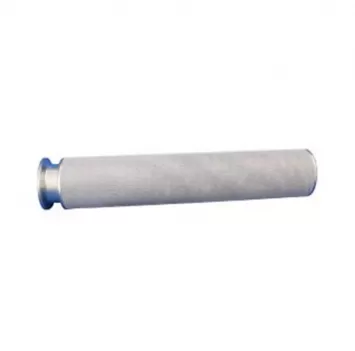

Stainless Steel Mesh Sintered Filter Cartridge

Ordering Information
SJWRemoval RatingsSizeEnd capSeal ring materialMaterialExample

0100=1μm
0300=3μm
0500=5μm
1000=10μm
2000=20μm
3000=30μm
5000=50μm
10000=100μm
5=5"
10=10"
20=20"
30=30"
40=40"
F=DOE
=222+Flat
=222+Fin
=226+Flat
=226+Fin
= M30Thread+Flat
=M30Thread+Fin
S=Silicon
V=Viton
E=EPDM
B=NBR
CP=PEFE
A=S304
=S316L
YTSJW0100-5-FSA

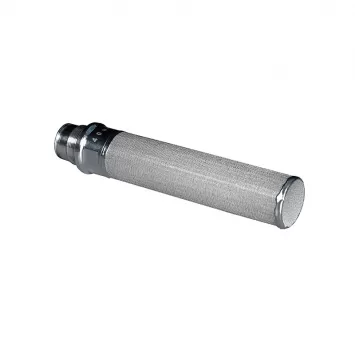

Stainless Steel Mesh Sintered Filter Cartridge

Product Description

Sintered metal mesh filter cartridge is the cylindrical filter element made of sintered wire mesh.The interlacing of the mesh in each layer of this laminated sintered filter forms an optimized filtration system with small and uniformly shaped pores. It is seen to have great filtration accuracy, low resistance, formidable mechanical strength, good corrosion resistance, heat and cold tolerance, and workability, making it suitable for multiple industrial and practical uses.

Product Advantage

● Sintered process makes the mesh not easy to deform.

● Rigid, hard to be damaged.

● High permeability.

● Precise filter rating.

● Easy to be back-washed, long using life

Application

1. Mechanical industry: Precision filtration of various hydraulic oil lubricating oil.

2. Pharmaceutical Industry: Material filtration, gas filtration, washing and drying.

3. Food and beverage industry: Filtering of mineral water, beverages, fruit juice and alcoholic beverages.

4. Powder Industry: Application of gas uniformization.

5. Petroleum industry: Clarification of oil products.

6. Others: Resonator in explosion-proof electrical apparatus, etc.

Product Structure

Filter material: Five-layer/Seven-layer sintered mesh

Material: 304/316L

Upper and lower end covers: 304/316L

Sealing ring: See order information table

Outer diameter: 60 mm, Filtration area: 0.05 m2/10"

Length: 5" 10" 20" 30" 40"

Note: Special can be customized according to requirements!


Product performance

Max.working temperature  ≤600℃

Max. working pressure drop ≤0.8Mpa
