May 16, 2025
When it comes to gas turbine operation, clean air is essential for performance, efficiency, and equipment longevity. One of the most effective solutions for maintaining clean airflow is the box-type air filter. These filters play a critical role in protecting turbine components from airborne contaminants such as dust, pollen, moisture, and industrial pollutants.
In this guide, we’ll explain what box-type air filters are, how they work, and why they are widely used in gas turbine systems. Whether you are an engineer, plant manager, or procurement specialist, this article will help you better understand the value of these filters and how to choose the right one.

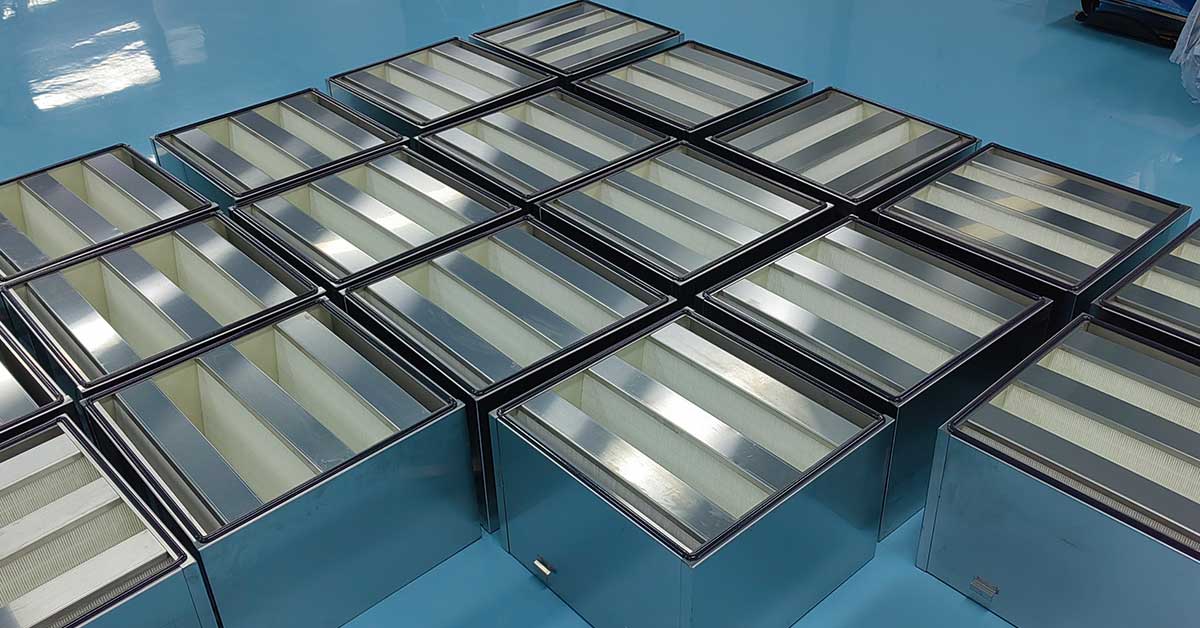

Box-type air filters, also known as rigid box filters or compact filters, are high-efficiency filters housed in a rigid frame. They are designed to handle high air volumes while maintaining low pressure drop and consistent filtration performance. The “box” refers to their rectangular, sealed frame, which makes installation easy and prevents air bypass.
These filters are commonly used as final-stage filters in gas turbine air intake systems, especially in environments with high dust concentrations or fluctuating humidity levels.
Gas turbines require a massive volume of clean air for combustion. Even small particles can cause serious problems, such as:
Erosion of turbine blades
Fouling of compressor components
Reduced fuel efficiency
Unexpected downtime and maintenance
By using high-efficiency box-type filters, operators can significantly reduce these risks and extend the lifespan of their turbines.
1. High Dust-Holding Capacity
These filters are designed to capture a large quantity of particles without rapidly increasing airflow resistance.
2. Rigid Construction
Their sturdy frame—usually made from galvanized steel or plastic—maintains its shape under varying pressure and humidity levels.
3. Deep-Pleated Media Design
The pleated filter media increases the surface area for filtration, improving efficiency and airflow.
4. Moisture and Corrosion Resistance
Ideal for outdoor or coastal installations where moisture and salt are common.
5. Low Pressure Drop
Helps maintain airflow efficiency, reducing energy consumption.
Box-type air filters are typically rated according to EN779, ISO 16890, or ASHRAE MERV standards. For gas turbines, filters in the F9 to H13 (ISO ePM1 85–95%) or MERV 15–17 range are commonly used.
Pre-Filters: G4 or MERV 8–10, to catch larger particles.
Final Filters (Box-Type): F9–H13, to capture fine dust and aerosols.
1. Improved Turbine Efficiency
Clean air improves combustion efficiency, which translates to more power and lower fuel consumption.
2. Extended Turbine Life
Filtering out fine particles prevents erosion and fouling, reducing wear and tear.
3. Reduced Maintenance
Less contamination means fewer cleaning cycles and less unscheduled downtime.
4. Lower Operating Costs
Efficient filtration reduces the energy load on intake fans and helps maintain optimal turbine performance.
5. Environmental Compliance
High-efficiency filters help reduce emissions by improving combustion and reducing oil carryover.
Box-type air filters are used in a variety of gas turbine installations, including:
Power generation plants
Industrial process turbines
Oil & gas facilities
Aviation ground-based turbines
Combined Heat and Power (CHP) systems
They are especially valuable in harsh environments with:
High dust loads (deserts, mining areas)
High humidity or coastal exposure
Cold climates (ice and snow filtration)
Urban or industrial air pollution
When selecting a box-type air filter for your gas turbine, consider the following:
1. Filter Efficiency (ePM or MERV rating)
2. Airflow Capacity (CFM or m³/h)
3. Pressure Drop
4. Filter Media Type (synthetic, fiberglass, nanofiber)
5. Operating Environment (temperature, humidity, salt exposure)
6. Mounting Configuration (front-load, side-load, vertical or horizontal flow)
7. Service Life and Replacement Frequency
8. Compatibility with Pre-Filters and Coalescers
Working with a reliable supplier or filter manufacturer can help you select the right configuration for your specific turbine and environmental conditions.
Regular Inspections: Check for visible damage or clogging.
Pressure Monitoring: Use differential pressure gauges to track performance.
Scheduled Replacement: Don’t wait for total clogging; replace based on pressure drop or runtime hours.
Check Seals and Frames: Ensure there are no leaks or bypasses that reduce filter efficiency.
Box-type air filters are a smart investment for any gas turbine operation. They provide high-efficiency filtration, robust performance in challenging environments, and long service life. By using the right filters and maintaining them properly, you can protect your turbines, lower your operational costs, and improve system reliability.
If you're looking to upgrade your air filtration system or need help choosing the best box-type filters for your gas turbines, contact us.
Q1: How often should box-type air filters be replaced in gas turbines?
A: It depends on the environment, but typically every 6 to 12 months, or when the pressure drop exceeds the recommended limit.
Q2: Can box-type filters be used with coalescer or pre-filter stages?
A: Yes. In fact, combining box-type filters with coalescers and pre-filters enhances performance and extends filter life.
Q3: Are there eco-friendly options for box-type filters?
A: Some manufacturers offer recyclable frames and eco-safe media. Check for certifications like ISO 14001 or RoHS compliance.
